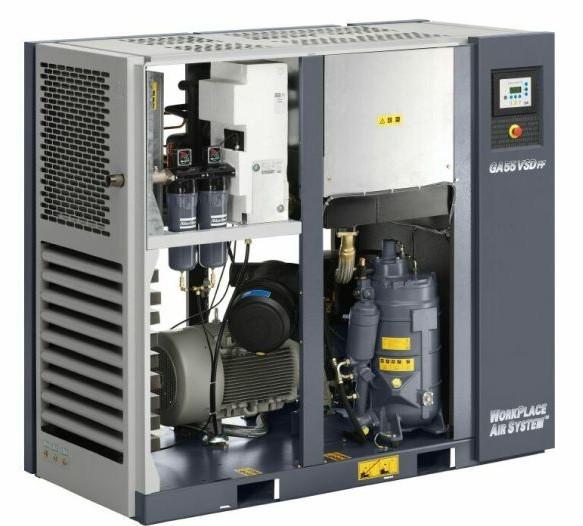

electric motor instrument Screw air compressor

Type:: Screw

Voltage:: 380v/50Hz/3Ph

Dimension(L*W*H):: 4200*2100*2200mm

Capacity discharge:: 0.65-1.2 m³/min

Working pressure:: 7-13bar

Power:: 7.5-315kw

We're here to help:

Easy ways to get the answers you need.

Technical Data
Specifications
Inquiry

Screw Air compressor Technical Specifications:

Model		SG08	SG11	SG15	SG18	SG22	SGD22	SG30	SGD30
Capacity / Pressure (m³/min / Mpa)		1.2/0.7	1.7/0.7	2.4/0.7	3.1/0.7	3.8/0.7	3.8/0.7	5.2/0.7	5.2/0.7
		1.1/0.8	1.6/0.8	2.2/0.8	2.9/0.8	3.5/0.8	3.5/0.8	5.0/0.8	5.0/0.8
		0.95/1.0	1.4/1.0	2.0/1.0	2.7/1.0	3.2/1.0	3.2/1.0	4.3/1.0	4.3/1.0
		0.8/1.3	1.2/1.3	1.7/1.3	2.2/1.3	2.9/1.3	2.9/1.3	3.7/1.3	3.7/1.3
Motor	Power (KW)	7.5	11	15	18.5	22	22	30	30
Motor	Horsepower	10	15	20	25	30	30	40	40
Noise dB(A)		65±2	68±2	68±2	69±2	69±2	69±2	69±2	69±2
Air Outlet Pipe Diameter		G3/4	G3/4	G3/4	G1 1/4	G1 1/4	G1 1/4	G1 1/4	G1 1/4
Weight (kg)		200	335	350	500	500	520	560	650
Housing dimension	L(mm)	750	950	930	1100	1100	1300	1100	1500
	W(mm)	650	770	770	850	850	850	850	1000
	H(mm)	830	1100	1100	1300	1300	1150	1300	1300
Cooling air Flow ( m³.min)		23	91	91	100	100	100	100	100

Model		SG37	SGD37	SG45	SGD45	SG55	SGD55	SG75
Capacity / Pressure (m³.min/Mpa)		6.4/0.7	6.4/0.7	8.0/0.7	8.0/0.7	10.5/0.7	10.5/0.7	13.6/0.7
		6.1/0.8	6.1/0.8	7.7/0.8	7.7/0.8	9.8/0.8	9.8/0.8	13.3/0.8
		5.7/1.0	5.7/1.0	7.0/1.0	7.0/1.0	8.7/1.0	8.7/1.0	11.6/1.0
		5.1/1.3	5.1/1.3	5.8/1.3	5.8/1.3	7.5/1.3	7.5/1.3	9.8/1.3
Motor	Power (KW)	37	37	45	45	55	55	75
Motor	Horsepower	50	50	60	60	75	75	100
Noise dB(A)		70±2	70±2	72±2	72±2	73±2	73±2	75±2
Air Outlet Pipe Diameter		G1 1/2	G1 1/2	G1 1/2	G1 1/2	G2	G2	G2
Weight (kg)		700	720	700	900	1230	1350	1350
Housing dimension	L(mm)	1200	1500	1200	1500	1500	1650	1550
	W(mm)	1000	1000	1000	1000	1150	1170	1270
	H(mm)	1420	1300	1420	1300	1500	1440	1500
Cooling air Flow ( m³.min)		180	180	191	191	320	320	330
Water Cool	T/H Water Flow	-	-	3	3	5	5	5
Water Cool	m³/min Air Flow	-	-	23	23	23	23	23

`Quick Details`

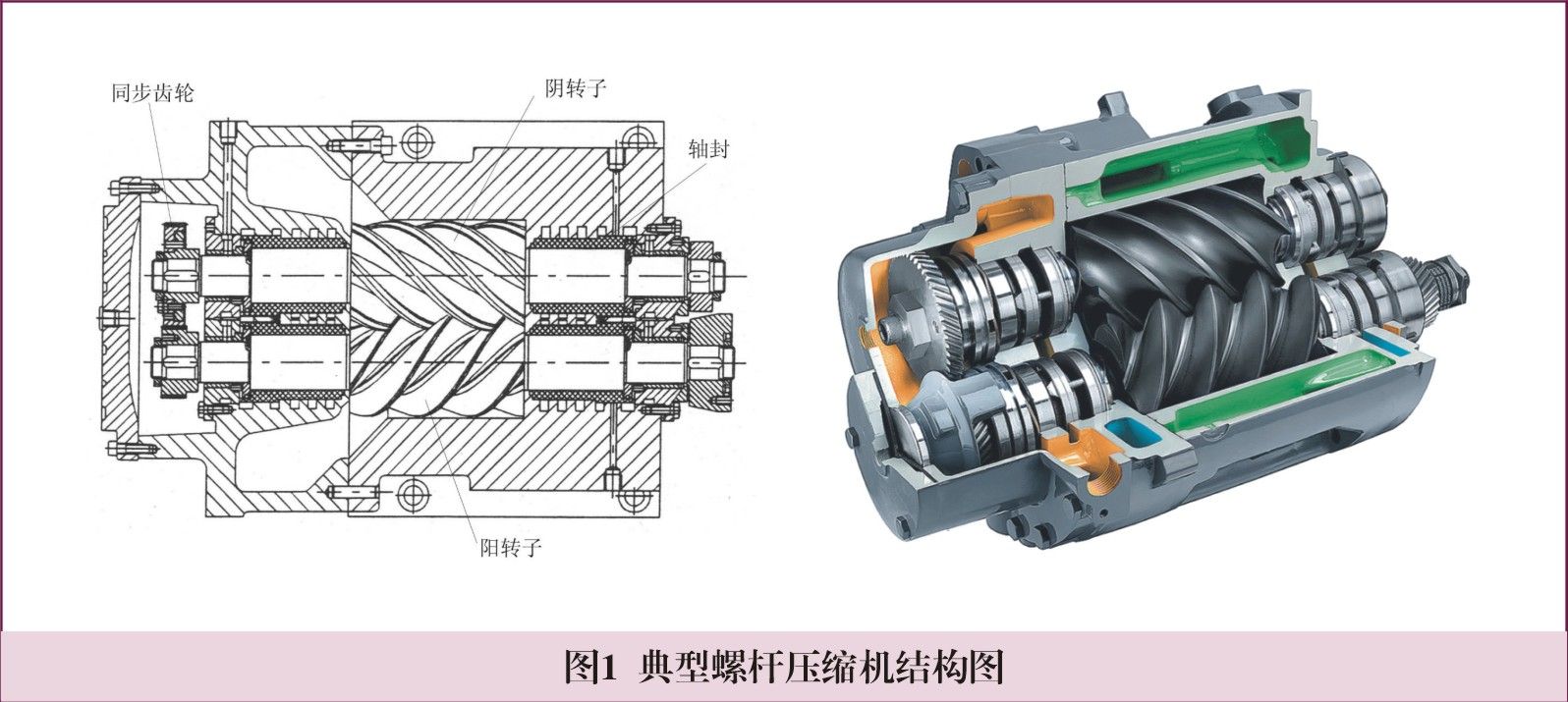

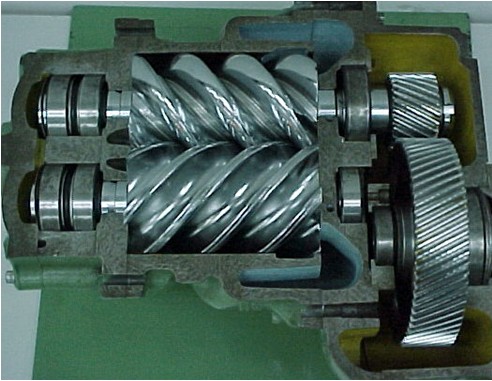

Condition: New Type: Screw Configuration: Stationary Power Source: AC Power Lubrication Style: Lubricated Mute: No Place of Origin: China (Mainland) Brand Name: JIN NIU Model Number: SG315 Voltage: 380v/50Hz/3Ph Dimension(L*W*H): 4200*2100*2200mm Weight: 7200kg Certification: CE,TUV,ISO Warranty: whole compressor for 1year Capacity discharge: 0.65-1.2 m³/min Working pressure: 7-13bar Power: 7.5-315kw Noise level: 65±2dB(A) Cooling method: Air Cooled Connection: 3/4' Quality: Excellent Product Description： 1. Air end:By using the most advanced 3rdgeneration 5:6 rotors and the optimized rotor profile from Europe, our air end are the best-in-class with low noise, low energy consumption, low maintenance cost, and long reliable service life. 2. Motor :With the tailor-made low RPM motor and the isolation rate F SKF bearings, our compressor are ensure to operate reliably and are 3%-5% more efficient than competing machines. 3. Oil Filter:Adopting the aerospace design revolving oil filter with superior materials,our oil filter show a better filtering result than other oil filters and effectively extend the service life of air end. 4. Oil-Air Separator:With the super high volume tank, the superior quality separator components, and the advanced design thrice oil-air separator, our compressor can ensure the high quality of the compressed air which contains less than 3ppm oil. 5. Air Filter:By using the large dust holding and low flow resistance design, our air filters can filter the micro articles in the air to ensure every components of the system works normally and efficiently. 6. Air Inlet Valve:With the advanced design, the inlet valve can be adjusted between 0 to 100%. By using the volume adjustment valve, the compressors will loss press and have longer service life. 7. Superior electronic control operating system:By using the intelligent microcomputer control system, the unit with a powerful fault diagnosis and protective function which can work last for 24 hours without watch.

kenuonengyuan@126.com +86 0371 2888 8159

Your name :
Your tel :
* Your mail :
Your company :
Your country :
* Inquiry :	Please input your inquiry

Condition:	New	Type:	Screw	Configuration:	Stationary
Power Source:	AC Power	Lubrication Style:	Lubricated	Mute:	No
Place of Origin:	China (Mainland)	Brand Name:	JIN NIU	Model Number:	SG315
Voltage:	380v/50Hz/3Ph	Dimension(LWH):	420021002200mm	Weight:	7200kg
Certification:	CE,TUV,ISO	Warranty:	whole compressor for 1year
Capacity discharge:	0.65-1.2 m³/min	Working pressure:	7-13bar	Power:	7.5-315kw
Noise level:	65±2dB(A)	Cooling method:	Air Cooled	Connection:	3/4'
Quality:	Excellent
