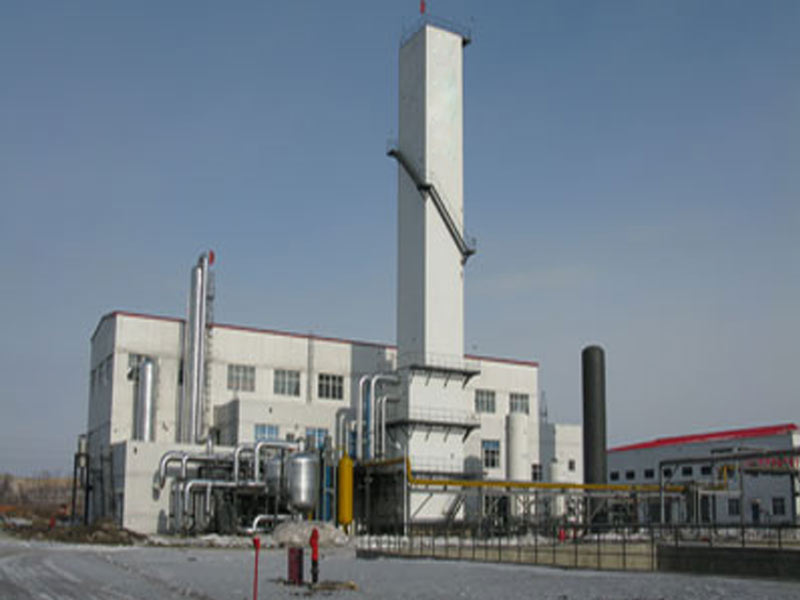

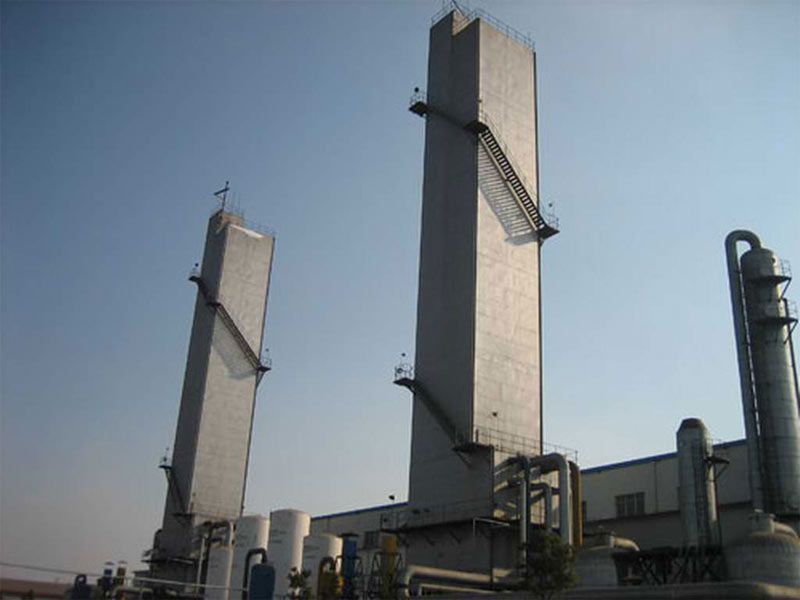

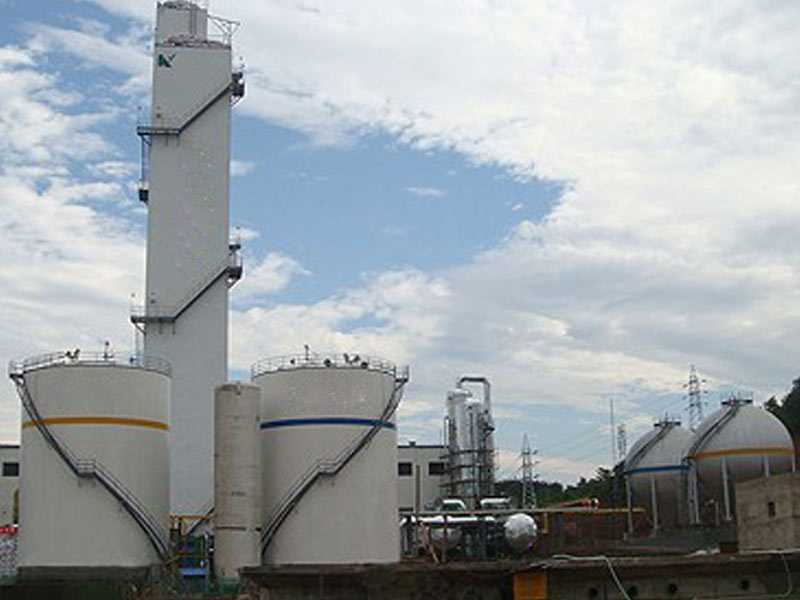

Air Separation Plant KDON-4500/9000

  • oxygen capacity: 4500Nm3/h
  • oxygen output pressure: 2.5Mpa
  • oxygen purity: 99.6%
  • nitrogen capacity: 9000 Nm3/h
  • Nitrogen pressure regulating: 1.6→12MPa
  • Vacuum liquid argon storage vessel: 20m3

We're here to help:

Easy ways to get the answers you need.

  • air separation plant
  • air separation plant
  • air separation plant
  • air separation plant
  • air separation plant
  • Technical Data
  • Specifications
  • Inquiry

 List OF MODEL KDON-4500/4500 ASP (Subject to the final design)

No. Name Specification Unit Quantity Net weight(Kg) Package
overall
dimension
(M3) mm
Gross weight (Kg) Supplier Price
(USD)
Unit Total
I Air compression system
1 Air filter   Unit 1   9200 5800×2220×2100 27.13 11000 KF

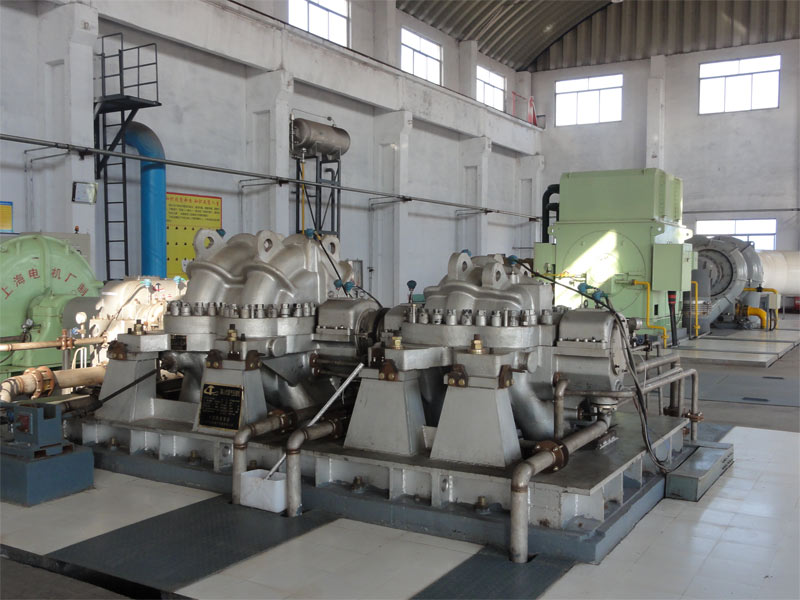

2 Centrifugal air compressor set 24500Nm3/h Unit 1   65015 200 M3 77553 KF Product
II Precooling air system
1 Air cooling tower Packed tower Unit 1   9940 19100×1870×191 6.83 11895 KF
2 Water cooling tower Packed tower Unit 1   6945 1370×1790×2330 5.72 8695 KF
3 Chiller unit   Unit 1   3200 4300×1000×2000 28.9 5854 KF
4 Normal temp. Water pump   Unit 2 496 992 2400×700×600 1.008×2 1400 KF
No. Name Specification Unit Quantity Net weight(Kg) Package overall dimension (M3) mm Gross weight (Kg) Supplier Price (USD)
Unit Total
5 Cryogenic pump   Unit 2 496 992 2400×700×600 1.008×2 1400 KF
6 Water filter   Unit 5 170 850 810×530×680 0.04×5 1125 KF
7 Ladder platform railing   Set 1   1500 32.1 3593 KF
8 System piping valve and accessory   Set 1   693 2800×1950×1200 6.552 693 KF
III Mole sieve purification system
1 Molecular Sieve adsorber   Unit 2 6330 12660 6890×3200×304 67.1×2 16704 KF
2 Molecular Sieve adsorbant         13000 3050×1660×1160 5.9×7 15750 KF
3 Electric heater   Set 2 units 998 1996 3550×840×1100 3.3×2 2370 KF
4 Automatic switch valve   Set 1     2500×1400×160 5.6   KF
No. Name Specification Unit Quantity Net weight(Kg) Package overall dimension (M3) mm Gross weight (Kg) Supplier Price (USD)
Unit Total
5 Vent silencer   Unit 1   1011 2380×1300×1330 4.2 1200 KF
6 System piping valve and accessory   Set 1   2000 2600×1840×1270 6.08 3000 KF
IV Rectifier system
1 Main heat exchanger   Set 1   13954 8150×2550×2550 79.1 18266 KF
2 Upper tower Packing +sieve plate Unit 1   12599 66.4 15965 KF
3 Lower tower Composited with main condenser Unit 1   5018 102.5 8089 KF
4 Main evaporator condenser Composited with lower tower Unit 1         KF
5 Crude argon columnⅠ   Unit 1   5875 74.34 10420 KF
6 Crude argon columnⅡ   Unit 1   11325 175.91 20000 KF
No. Name Specification Unit Quantity Net weight(Kg) Package overall dimension (M3) mm Gross weight (Kg) Supplier Price (USD)
Unit Total
7 Pure argon column   Unit 1   642 1130×1600×1180 21.33 789 KF
8 Subcooler   Unit 1   1060 3200×1800×1600 9.22 1560 KF
9 Thermo siphon vaporizer   Unit 1   211 2100×1460×1040 3.2 426 KF
10 Liquid measuring cylinder   Unit 2 49 98 2400×840×740 1.24 197 KF
11 Oxygen dissipative silencer   Unit 1   198 2860×1130×1330 4.3 298 KF
12 Nitrogen dissipative silencer   Unit 1   250 2940×1330×1540 6.02 362 KF
13 Air ejector vaporizer   Unit 1   180 11880×820×1050 10.23 1310 KF
14 Cold insulation box   Set 1   113000 529.72 124416 KF

No. Name Specification Unit Quantity Net weight(Kg) Package overall dimension (M3) mm Gross weight (Kg) Supplier Price (USD)
Unit Total
15 Piping in cold insulation box   Set 1   4856 29.74 6818 KF
16 Accessories outside cold insulation box   Set 1   26195 56 37685 KF
17 Liquid argon pump   Unit 2   120 850×490×410 0.17×2 165 ACD/equivalence
18 Equipment、valve、piping support   Set 1   7898 32 8412 KF
19 Ladder, platform, railing of cold insulation box Set 1   18440 83.31 18684 KF (Documents provided by KF)
20 Valve and accessory   Set 1   2494 17.29 4718 KF
V Pressure build-up expander set
1 Expander body   Unit 2 1215 2430 1830×1760×3060 9.86×2 3840 KF
2 Expander filter   Unit 2 78 156 1390×830×1080 2.5 386 KF
No. Name Specification Unit Quantity Net weight(Kg) Package overall dimension (M3) mm Gross weight (Kg) Supplier Price (USD)
Unit Total
3 Booster compressor after-cooler   Unit 2 942 1884 4770×650×790 2.45 2220 KF
4 Booster compressor filter   Unit 2 172 344 880×530×570 0.54 384 KF
5 Oil supply equipment   Unit 1   2534 3180×2370×2190 16.51 3558 KF
6 valve﹑piping and accessory   Set 1   300 5050×410×400 0.9 512 KF
VI Nitrogen compression system
1 Nitrogen compressor   Unit 2 27744 55488 103.61×2 86940 KF
2 Low pressure surge vessel   Unit 1   1793 6000×2160×2250 30 2400 KF
3 Medium pressure gas storage vessel 100m3 1.6MPa Unit 4 3968 158720 1740×3260×3300 338 173040 KF
4 Nitrogen pressure regulating system 1.6→12MPa Set 1   1200 2 1700 KF
No. Name Specification Unit Quantity Net weight(Kg) Package overall dimension (M3) mm Gross weight (Kg) Supplier Price (USD)
Unit Total
5 System valve and accessory   Set 1   560 2200×1600×1300 4.6 820 KF
VII Oxygen compression system
1 Oxygen compressor   Unit 2 27744 55488 103.61×2 86946 Kf
2 Low pressure surge vessel   Unit 1   1793 6000×2160×2250 30 2400 Kf
3 Medium pressure gas storage vessel   Unit 4 39680 158720 17400×3260×3300 187.18×4 173040 Kf
4 Pressure regulating system   Set 1   1200 2 1700 Kf
5 System valve and accessory   Set 1   1120 9.2 1640 KF
VIII Liquid storage and gasification system
1 Vacuum liquid argon storage vessel 20m3 Unit 1   10480 8700×2800×3000 73.1 11000 KF
No. Name Specification Unit Quantity Net weight(Kg) Package overall dimension (M3) mm Gross weight (Kg) Supplier Price (USD)
Unit Total
2 Liquid argon pump 120Nm3/h Unit 1   224 990×400×480   0.2 420 Acd/ equivalence
3 Gasifier 120Nm3/h Unit 1   400 3280×1820×1780 10.6 600 Kf
4 Piston type liquid argon pump 100Nm3/h Unit 1   200 1500×800×800   0.96 250 Kf
5 Gasifier 100Nm3/h Unit 1   365 2600×1650×1470 6.3 762 Kf
6 Vessel filling with gas GC-10 Unit 1   260 5000×820×600 2.46 560 Kf
7 Pressure regulating system 3.0→1.0NPa Set 1   1200 2 1700 Kf
8 Vacuum liquid oxygen storage vessel 30m3×1 Unit 1   14140 8340×3400×3600 62 15000 Kf
9 Liquid oxygen pump 4500Nm3/h 3.0MPa Unit 1   400 1500×1000×1000   1.5 600 ACD/equivalence

No. Name Specification Unit Quantity Net weight(Kg) Package overall dimension (M3) mm Gross weight (Kg) Supplier Price (USD)
Unit Total
10 Gasifier 4500Nm3/h Unit 1   500 3280×1820×1780 10.6 1000 KF
11 Oxygen filling system (including oxygen used for medical)
A Piston type liquid oxygen pump 100Nm3/h Unit 1   100 1500×800×800   0.96 150 KF
B Gasifier 100Nm3/h Unit 1   230 2600×1650×1470 6.3 582 KF
C Vessel filling with gas GC-20 Unit 1   260 5000×820×600 2.46 560 KF
12 System valve and accessory   Set 1   150 1200×800×800 0.8 250 KF
IX Aluminum solder in cold box       250 1200×1200×1000 2.5 500 KF
X Engineering package material Set 1
1 Main material of erection in ASP battery limit         ~85000 184 ~100000 KF
No. Name Specification Unit Quantity Net weight(Kg) Package overall dimension (M3) mm Gross weight (Kg) Supplier Price (USD)
Unit Total
2 Perlite       55 165000 ~3000 168000 KF
3 Insulated galvanized (sheet) iron         500 5.4 600 KF
4 Mineral wool         6100 80 8240 KF
5 Cleaning solvent lube oil         4800 11 5427 KF
XI Instrument control system
1 Analyzer cabinet   Unit 3 120 360 700×600×1700 3.4 540 KF
2 Instrument cabinet   Unit 3 200 600 1000×1000×2300 7 1200 KF
3 UPS cabinet   Unit 1   500 800×600×1800 0.9 600 USA
4 Instrument case   Case 2   600 1800×1200×1000 4.4 780 KF
No. Name Specification Unit Quantity Net weight(Kg) Package overall dimension (M3) mm Gross weight (Kg) Supplier Price (USD)
Unit Total
5 Local instrument   Case 1   400 1800×1200×1000 2.2 500 KF
6 Transmitter 1151 Case 1   500 1800×1200×1000 2.2 600 KF
7 Gas marked bottle   Case 1   350 1800×800×800 1.2 450 KF
8 DCS part   Case 2   300 8.7 500 SIMENS
9 DCS control cabinet   Case 1   600 1500×900×2300 3.1 700 SIMENS
10 Cable   Case 1   ~1500 1500×1500×1000 2.3 2000 KF
11 Operating platform   Case 2   350 3000×1250×850 15.2 500 KF
12 Analyzer instrument               KF

No. Name Specification Unit Quantity Net weight(Kg) Package overall dimension (M3) mm Gross weight (Kg) Supplier Price (USD)
Unit Total
A Co2 analyzer 0~5ppmCO2 Unit 1   350 1500×1200×1000 2.3 450 SIMENS
B Pure oxygen anaylzer 98~100%O2 Unit 1 SIMENS
C Product nitrogen analyzer 0~10ppmCO2 Unit 1 USA
D Oxygen in argon anaylzer 0~10ppmCO2 Unit 1 USA
E Argon fraction anaylzer 0~20Ar Unit 1 SIMENS
F Oxygen in argon analyzer 0~10%O2 Unit 1 SIMENS
G Argon in crude argon analyzer 80~100%Ar Unit 1 SIMENS
H Minor water analyzer 0~100 ppmH2O Unit 1 U.K.
No. Name Specification Unit Quantity Net weight(Kg) Package overall dimension (M3) mm Gross weight (Kg) Supplier Price (USD)
Unit Total
I Machine cabinet   Unit 3         KF
J Pre-treatment equipment   Unit 8 KF
13 Electromagnet wires cabinet   Unit 1   510 1620×860×930 1.5 610 KF
14 Thermal resistance temp. tester pressure gauge Case 1   390 1500×1500×1000 2.3   KF
15 Instrument valve and accessory   Case 1   500 1630×860×1200 1.2 600 KF
16 Flow orifice   Case 1   200 1000×800×800 0.64 300 KF
17 Copper tube φ6  φ10 Case 1   800 1900×1630×1200 3.8 700 KF
18 Bridge and accessory   Case 1   3000 2500×1800×800 3.6 3500 KF

No. Name Specification Unit Quantity Net weight(Kg) Package overall dimension (M3) mm Gross weight (Kg) Supplier Price (USD)
Unit Total
19 Steel pipe channel metal hose   Case 1   3300 6065×1030×450 2.8 4300 KF
20 Flange and accessory   Case 1   400 1400×1200×820 1.4 500 KF
21 Regulating valve   Case 1   3100 35 5100 KF
XII Electric control system
1 High pressure cabinet Mid-set type Unit 12 1500 18000 2010×1160×2445 68.4 24000 KF
2 Thermal variable resistance starter Set 2 1290 2600 1650×880×2120 6.16 4000 KF
3 Low pressure cabinet   Unit 9 700 6300 1160×1160×2515 31 9000 KF
4 High pressure microcomputer detecting control background system Set 1   2000 1000×1000×800 0.8 4000 KF
5 Local operating box   Set 1   5500 1960×860×1300 22 6500 KF
No. Name Specification Unit Quantity Net weight(Kg) Package overall dimension (M3) mm Gross weight (Kg) Supplier Price (USD)
Unit Total
6 D.C. panel 65AH Set 1   650 920×800×2500 1.84 800 KF
7 System accessory Cable construction material Set 1   ~6000 4000×2000×1500 18 ~8000 KF
XII Installation, construction, trail run adjustment of equipment in ASP battery limited. KF

  A:Installation tools(excluding hoisting machinery)
  B:Absolutely working period: 300 personnel per month.

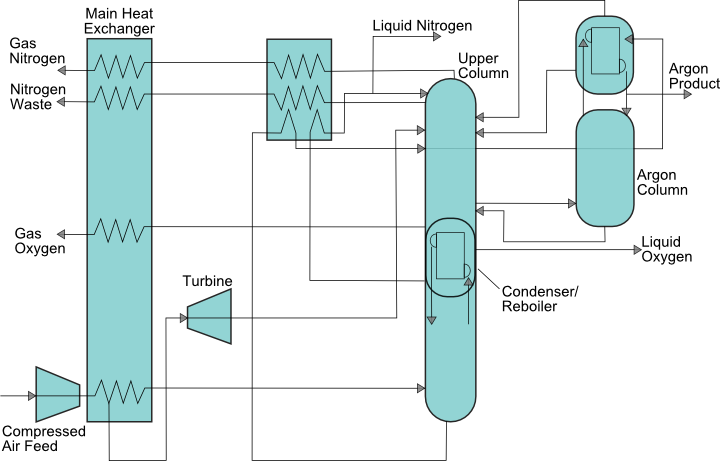

Air which was sucked in from air intake tower enters the suction air filter and after being removed of dust and other mechanical contaminants in it, it is compressed to the pressure of 0.55MPa by centrifugal air compressor. Air from the air compressor is cooled to 10℃ in the direct contact after cooler and refrigeration unit after the water being separated its condensed water, taken into the molecular sieve adsorber for removing H2O, C2H2 and CO2. There are two molecular sieve adsorbers which operate on a staggered cycle, i.e. one vessel is adsorbing the contained impurities while the other is being reactivated by waste nitrogen from the rectifying column.

Then the cleaned air is divided into two streams, one of them is taken into the rectifying column and cooled by the returned waste nitrogen, oxygen and nitrogen through the main heat exchanger. The steam-liquid air mixture is taken into the lower column for rectifying, and herein the pure nitrogen of 99.99% from the top of the column enters into the evaporator-condenser and condensed by liquid oxygen from the upper column. A part of the liquid nitrogen is fed to the lower column as reflux. The other part is divided into two streams, one of them after subcooling enters into the top of the upper column after throttled, the other enters crude argon condenser of crude argon column, after vaporized, it enters in upper column.
Another cleaned stream is compressed in booster end of the booster expansion turbine, and then enters the main heat exchanger. Two streams of air from the middle and cold end of the main heat exchanger joint together and enter into the turbine expansion to generate most refrigeration for need of the plant's operation. After the expanded air is removed of overheat through the thermosyphon heat exchanger, it enters to the middle of the upper column for rectifying.
A stream of 8% Ar is drawn from middle-lower section of upper column and enters Crude Argon Column I to be rectified. Gas is drawn from top of Crude Argon Column I and enters Crude Argon Column II, then enters condenser as its reflux. The liquid at the bottom of Crude Argon Column II is pumped into top of the Crude Argon Column I as reflux, the crude argon is drawn from Crude Argon Column I and enters heat exchanger then enters pure argon column, pure liquid argon of 99.99% Ar is drawn from bottom of pure argon column and enters Lar storage & gasification system.
The product oxygen with the purity of 99.8% O2 gained at the bottom of the upper column is warmed up through the heat exchanger and then delivered to the compressed oxygen system.
The LOX of 99.8% O2 is drawn from oxygen side of the evaporator-condenser, some of them enters storage tank as product. The product nitrogen of 99.99%N2 from recycle N2 compression system is supplied to the user for use.
The waste nitrogen from the top of the upper column is warmed up, one part goes to the regeneration molecular sieve adsorber, another goes to waste nitrogen tower to cool the water.
