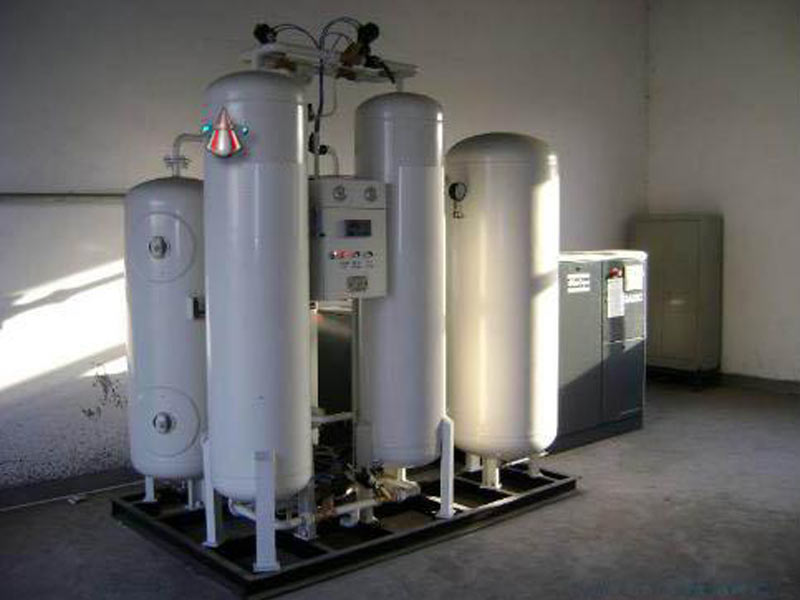

PSA Nitrogen Generator

  • Model: KNPN97-10
  • Nitrogen Output (Nm3/h): 10
  • Required Air (Nm3/min): 0.35
  • Dimension L×W×H(mm): 600x400x1400
  • Weight (kg): 160

We're here to help:

Easy ways to get the answers you need.

  • psa nitrogen generator
  • psa nitrogen generator
  • psa nitrogen generator
  • Technical Data
  • Specifications
  • Inquiry

Technical Specification of KNPN97-Type PSA Nitrogen Generator(Nitrogen Purity: 97%)
Specification Nitrogen Output
(Nm3/h)
Required Air
(Nm3/min)
Dimension
L×W×H(mm)
Weight
(kg)
KNPN97-10 10 0.35 600x400x1400 160
KNPN97-20 20 0.7 800x600x1500 290
KNPN97-40 40 1.4 1000x650x1800 440
KNPN97-60 60 2.1 1100x750x2000 560
KNPN97-100 100 3.5 1400x800x2100 880
KNPN97-150 150 5.25 1500x900x2300 1200
KNPN97-200 200 7.0 1600x900x2400 1550
KNPN97-400 400 14.0 1900x1100x2500 2550
KNPN97-600 600 21.0 2100x1200x2800 3350
KNPN97-760 760 26.6 2200x1250x2900 4280
KNPN97-980 980 34.3 2500x1300x2900 4950
KNPN97-1150 1150 40.3 2700x1400x3000 5860
KNPN97-1330 1330 46.5 3000x1500x3100 7100
KNPN97-1520 1520 53.2 3400x1600x3100 8280
KNPN97-1700 1700 59.5 3400x1600x3300 9250
KNPN97-1900 1900 66.5 3400x1600x3500 10360
KNPN97-2250 2250 78.7 3700x1800x3600 12840
KNPN97-3000 3000 105 3850x2000x3600 13700
KNPN97-4500 4500 157 4300x2200x4100 19120
Technical Specification of KNPN98-Type PSA Nitrogen Generator(Nitrogen Purity: 98%)
Specification Nitrogen Output
(Nm3/h)
Required Air
(Nm3/min)
Dimension
L×W×H(mm)
Weight
(kg)
KNPN98-8 8.0 0.33 600x400x1400 160
KNPN98-16 16 0.66 800x600x1500 290
KNPN98-32 32 1.33 1000x650x1800 440
KNPN98-48 48 2.0 1100x750x2000 560
KNPN98-79 79 3.3 1400x800x2100 880
KNPN98-126 126 5.25 1500x900x2300 1200
KNPN98-160 160 6.66 1600x900x2400 1550
KNPN98-315 315 13.1 1900x1100x2500 2550
KNPN98-475 475 19.8 2100x1200x2800 3350
KNPN98-630 630 26.3 2200x1250x2900 4280
KNPN98-790 790 33 2500x1300x2900 4950
KNPN98-950 950 39.6 2700x1400x3000 5860
KNPN98-1110 1110 46.2 3000x1500x3100 7100
KNPN98-1260 1260 52.5 3400x1600x3100 8280
KNPN98-1420 1420 59.1 3400x1600x3300 9250
KNPN98-1580 1580 65.8 3400x1600x3500 10360
KNPN98-1875 1875 78.1 3700x1800x3600 12840
KNPN98-2490 2490 103.7 3850x2000x3600 13700
KNPN98-3750 3750 156.3 4300x2200x4100 19120
KNPN99-Type Nitrogen Generator(Nitrogen Purity: 99%)
Technical Specification of KNPN99-Type PSA Nitrogen Generator(Nitrogen Purity: 99%)
Specification Nitrogen Output
(Nm3/h)
Required Air
(Nm3/min)
Dimension
L×W×H(mm)
Weight
(kg)
KNPN99-7 7 0.33 600x400x1400 160
KNPN99-13 13 0.61 800x600x1500 290
KNPN99-26 26 1.23 1000x650x1800 440
KNPN99-40 40 1.9 1100x750x2000 560
KNPN99-66 66 3.13 1400x800x2100 880
KNPN99-105 105 4.98 1500x900x2300 1200
KNPN99-131 131 6.22 1600x900x2400 1550
KNPN99-262 262 12.4 1900x1100x2500 2550
KNPN99-395 395 18.8 2100x1200x2800 3350
KNPN99-526 526 25.0 2200x1250x2900 4280
KNPN99-658 658 31.2 2500x1300x2900 4950
KNPN99-790 790 37.5 2700x1400x3000 5860
KNPN99-840 840 40.0 3000x1500x3100 7100
KNPN99-1050 1050 50.0 3400x1600x3100 8280
KNPN99-1185 1185 56.3 3400x1600x3300 9250
KNPN99-1315 1315 62.5 3400x1600x3500 10360
KNPN99-1560 1560 74.0 3700x1800x3600 12840
KNPN99-2075 2075 98.0 3850x2000x3600 13700
KNPN99-3125 3125 148.0 4300x2200x4100 19120
Technical Specification of KNPN995-Type PSA Nitrogen Generator(Nitrogen Purity: 99.5%)
Specification Nitrogen Output
(Nm3/h)
Required Air
(Nm3/min)
Dimension
L×W×H(mm)
Weight
(kg)
KNPN995-5 5 0.26 600x400x1400 160
KNPN995-10 10 0.52 800x600x1500 290
KNPN995-20 20 1.03 1000x650x1800 440
KNPN995-30 30 1.55 1100x750x2000 560
KNPN995-50 50 2.58 1400x800x2100 880
KNPN995-80 80 4.13 1500x900x2300 1200
KNPN995-100 100 5.17 1600x900x2400 1550
KNPN995-200 200 10.33 1900x1100x2500 2550
KNPN995-300 300 15.5 2100x1200x2800 3350
KNPN995-400 400 20.67 2200x1250x2900 4280
KNPN995-500 500 25.83 2500x1300x2900 4950
KNPN995-600 600 31.0 2700x1400x3000 5860
KNPN995-700 700 36.16 3000x1500x3100 7100
KNPN995-800 800 41.33 3400x1600x3100 8280
KNPN995-900 900 46.5 3400x1600x3300 9250
KNPN995-1000 1000 51.67 3400x1600x3500 10360
KNPN995-1500 1500 65.0 3700x1800x3600 12840
KNPN995-2000 2000 86.6 3850x2000x3600 13700
KNPN995-3000 3000 130.0 4300x2200x4100 19120
Technical Specification of KNPN999-Type PSA Nitrogen Generator(Nitrogen Purity: 99.9%)
Specification Nitrogen Output
(Nm3/h)
Required Air
(Nm3/min)
Dimension
L×W×H(mm)
Weight
(kg)
KNPN39-3.7 3.7 0.24 600x400x1400 160
KNPN39-7.4 7.4 0.49 800x600x1500 290
KNPN39-15 15 1.00 1000x650x1800 440
KNPN39-22 22 1.47 1100x750x2000 560
KNPN39-37 37 2.46 1400x800x2100 880
KNPN39-59 59 3.93 1500x900x2300 1200
KNPN39-74 74 4.93 1600x900x2400 1550
KNPN39-147 147 9.8 1900x1100x2500 2550
KNPN39-220 220 14.7 2100x1200x2800 3350
KNPN39-290 295 19.6 2200x1250x2900 4280
KNPN39-368 368 24.5 2500x1300x2900 4950
KNPN39-440 440 29.3 2700x1400x3000 5860
KNPN39-515 515 34.3 3000x1500x3100 7100
KNPN39-590 590 39.3 3400x1600x3100 8280
KNPN39-660 660 44.0 3400x1600x3300 9250
KNPN39-740 740 49.3 3400x1600x3500 10360
KNPN39-1125 1125 58.1 3700x1800x3600 12840
KNPN39-1495 1495 77.2 3850x2000x3600 13700
KNPN39-2250 2250 116.2 4300x2200x4100 19120
Technical Specification of KNPN9999-Type PSA Nitrogen Generator(Nitrogen Purity: 99.99%)
Specification Nitrogen Output
(Nm3/h)
Required Air
(Nm3/min)
Dimension
L×W×H(mm)
Weight
(kg)
KNPN49-2.8 2.8 0.2 600x400x1400 160
KNPN49-5.5 5.5 0.4 800x600x1500 290
KNPN49-11 11.0 0.8 1000x650x1800 440
KNPN49-16.6 16.6 1.2 1100x750x2000 560
KNPN49-28 28 2.0 1400x800x2100 880
KNPN49-45 45 3.1 1500x900x2300 1200
KNPN49-55 55 3.8 1600x900x2400 1550
KNPN49-110 110 7.7 1900x1100x2500 2550
KNPN49-165 165 11.6 2100x1200x2800 3350
KNPN49-220 220 15.4 2200x1250x2900 4280
KNPN49-275 275 19.3 2500x1300x2900 4950
KNPN49-330 330 23.1 2700x1400x3000 5860
KNPN49-385 385 27.0 3000x1500x3100 7100
KNPN49-440 440 31.0 3400x1600x3100 8280
KNPN49-500 500 35.0 3400x1600x3300 9250
KNPN49-550 550 38.5 3400x1600x3500 10360
KNPN49-655 655 46.0 3700x1800x3600 12840
KNPN49-870 870 61.0 3850x2000x3600 13700
KNPN49-1310 1310 92.0 4300x2200x4100 19120
Technical Specification of KNPN99999-Type PSA Nitrogen Generator(Nitrogen Purity: 99.999%)
Specification Nitrogen Output
(Nm3/h)
Required Air
(Nm3/min)
Dimension
L×W×H(mm)
Weight
(kg)
KNPN59-1.6 1.6 0.17 600x400x1400 160
KNPN59-3.3 3.3 0.35 800x600x1500 290
KNPN59-6.6 6.6 0.69 1000x650x1800 440
KNPN59-10 10.0 1.1 1100x750x2000 560
KNPN59-16 16 1.7 1400x800x2100 880
KNPN59-26 26 2.7 1500x900x2300 1200
KNPN59-33 33 3.46 1600x900x2400 1550
KNPN59-66 66 6.93 1900x1100x2500 2550
KNPN59-99 99 10.4 2100x1200x2800 3350
KNPN59-132 132 13.9 2200x1250x2900 4280
KNPN59-165 165 17.3 2500x1300x2900 4950
KNPN59-200 200 21.0 2700x1400x3000 5860
KNPN59-230 230 24.1 3000x1500x3100 7100
KNPN59-265 265 27.8 3400x1600x3100 8280
KNPN59-300 300 31.5 3400x1600x3300 9250
KNPN59-330 330 34.7 3400x1600x3500 10360
KNPN59-395 395 41.5 3700x1800x3600 12840
KNPN59-520 520 54.6 3850x2000x3600 13700
KNPN59-785 785 82.5 4300x2200x4100 19120
Technical Specification of KNPN999995-Type PSA Nitrogen Generator(Nitrogen Purity: 99.9995%)
Specification Nitrogen Output
(Nm3/h)
Required Air
(Nm3/min)
Dimension
L×W×H(mm)
Weight
(kg)
KNPN595-1.4 1.4 0.17 600x400x1400 160
KNPN595-2.8 2.8 0.34 800x600x1500 290
KNPN595-5.5 5.5 0.66 1000x650x1800 440
KNPN595-8.5 8.5 1.00 1100x750x2000 560
KNPN595-14 14 1.68 1400x800x2100 880
KNPN595-22 22 2.70 1500x900x2300 1200
KNPN595-28 28 3.36 1600x900x2400 1550
KNPN595-55 55 6.60 1900x1100x2500 2550
KNPN595-85 85 10.2 2100x1200x2800 3350
KNPN595-110 110 13.2 2200x1250x2900 4280
KNPN595-140 140 16.8 2500x1300x2900 4950
KNPN595-170 170 20.4 2700x1400x3000 5860
KNPN595-200 200 24.0 3000x1500x3100 7100
KNPN595-220 220 27.0 3400x1600x3100 8280
KNPN595-250 250 30.0 3400x1600x3300 9250
KNPN595-280 280 34.0 3400x1600x3500 10360
KNPN595-330 330 40.0 3700x1800x3600 12840
KNPN595-440 440 53.0 3850x2000x3600 13700
KNPN595-670 670 81.0 4300x2200x4100 19120


Features:
1、Skid-mounted structure, easy installation, small occupying area.
2、The unique process and adsorber structure provide high nitrogen output rate, high recycling rate and obvious energy-saving effect.
3、The top-down gas flow, exclusive rate control and side-vibrating loading and sieving guarantee the static operation of molecular sieve without powdering or adding.
4、The air pretreatment system is equipped with dehydrator, degreasing devices, deduster and voltage regulator. The clean air source insures long service life and high adsorption efficiency of adsorbers.
5、Modular design, one-finger operation, simple maintenance, no extra care, perennial safe autorun.
6、The internal and external surfaces of pressure-bearing components are derusted by sand blasting and degreased in order to extremely extend the service life of pneumatic components and detective components. Application Areas: 1. Metal heat treatment:Our products can provide protective gas and safe gas for industrial furnace in heat treatment process such as bright annealing and bright quenching in case of oxidation. 2、Electronic industry:Our products can provide protective gas, diluent gas, portable gas and nitrogen protection for auto system semiconductors and electronic components. 3、Aluminum industry:Our products can provide gas protection for aluminum products, aluminum processing and aluminum rolling.
4、Petrochemical industry:Our products can provide gas protection, equipment replacement, fluid delivery, chemical reaction agitation and nitrogen-injecting oil extraction in the process of petrochemical production. We can also provide nitrogen purge for pipeline containers, nitrogen back filling、replacement and leak detecting for storage tank and flammable gas protection. Nitrogen-back-filling delivery of chemical products, oil products and LNG products is also provided.
5、Medical and health:Our products can provide nitrogen-back-filling packing and delivering for pharmaceuticals raw materials and medicines as well as mothproofing and anticorrosion for Chinese herbal medicines.
6、Powder metallurgy:Our products can provide nitrogen protection for powder fritting and magnetic material fritting.
7、Fresh keeping of food, grain and vegetables: Our products can provide preservation and transportation for food, grain and vegetables.
8、Inflammable and explosive substance protection: Our products can provide protection for storehouses and cellar wells from dust exploring, coal mine outfire as well as preservation and transportation of ammunition.
9、Synthetic fiber: Our products can provide nitrogen-back-filling swage set and wire drawing antioxidation.
10、Chemical fiber, plastic and rubber:Our products can provide high pressure forming antioxidation, gas protection for wires and cables as well as gas protection and transportation during the process.
11、Float glass: Our products can provide gas protection during the process and tin bath antioxidation.
12、Beer and beverage: Our products can provide technical gas for fresh keeping and storing.

Application of officinal low-purity nitrogen:

Our products can serve in nitrogen-back-filling packing, transportation and protection of pharmaceutical raw materials and medicines as well as nitrogen back filling of western medicine injection, storage tank and container and can provide gas source for medicinal pneumatic transmission.

Technical Index:
Output:0~2000Nm3/h
Purity:99%
Dew Point: -45℃
Pure Gas Dust MMAD:0.01um
Bacterium:None

The development of high medical purity of NC-B series of medical high-purity nitrogen generator;

Technical Index:
Output:0~2000Nm3/h
Purity:≥99%
Dew Point: ≤-45℃
Pure Gas Dust MMAD:0.01um
Bacterium:None

Application of high-purity nitrogen:
Nitrogen is widely used in various industries. It is used in nitrogen protection, pneumatic transmission for synthetic drug, pure nitrogen insulation in bioengineering and nitrogen-back-filling embedment in preparation production. Nitrogen is also used as protective gas in electronic industry and glass industry and serves as product material in chemical industry.

High demand on nitrogen in medical production:
1、It is required that nitrogen purity be relatively high between 99%~99.99%;
2、It is required that nitrogen contain no dust or heat source and could be used in injection embedment.
3、It is required that nitrogen provide constant voltage in the process in order to guarantee the normal operation.

Advantages:
1、Fast start-up: Our products can provide up-to-standard nitrogen only in 15~30 minutes.
2、Automatic operation with no person on duty.
3、High-performance molecular sieve filling: Tighter, firmer and longer service life.
4、Stable and adjustable pressure, purity and flow according to individual requirements.
5、Reasonable structure, advanced process, safe and stable, low energy consumption.
