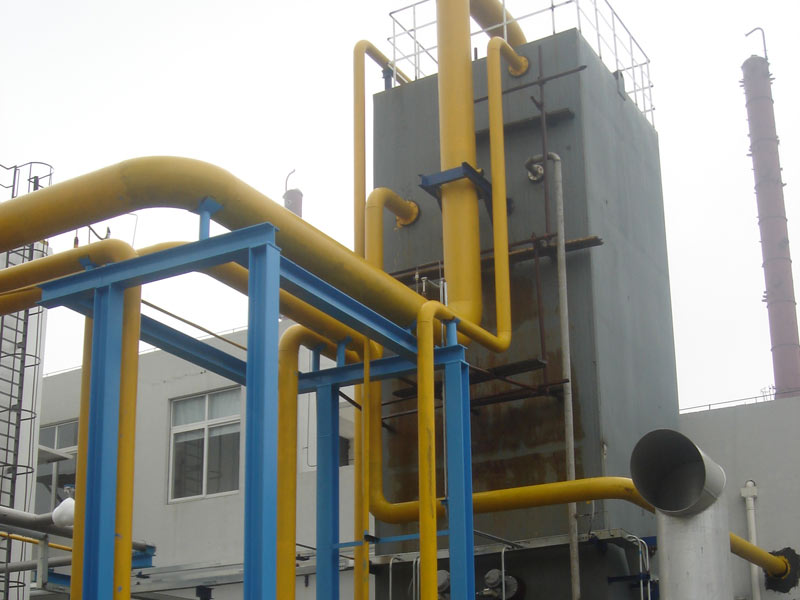

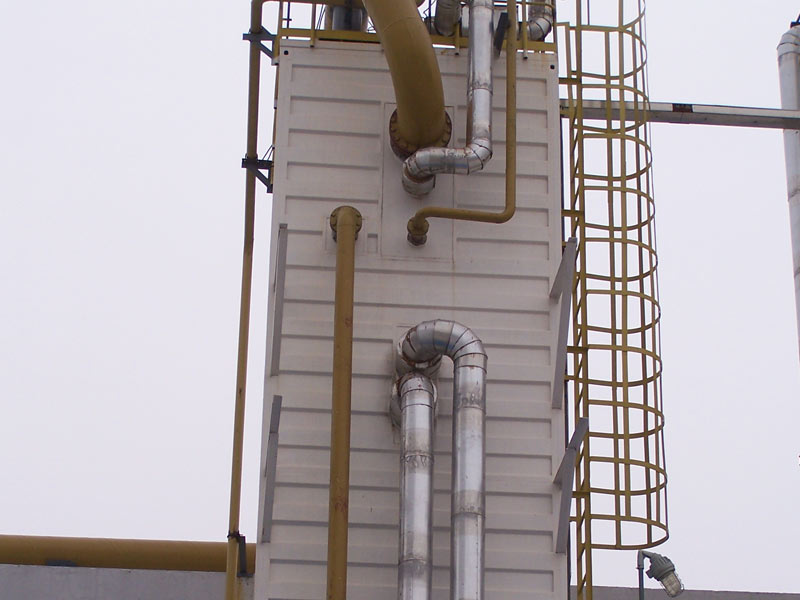

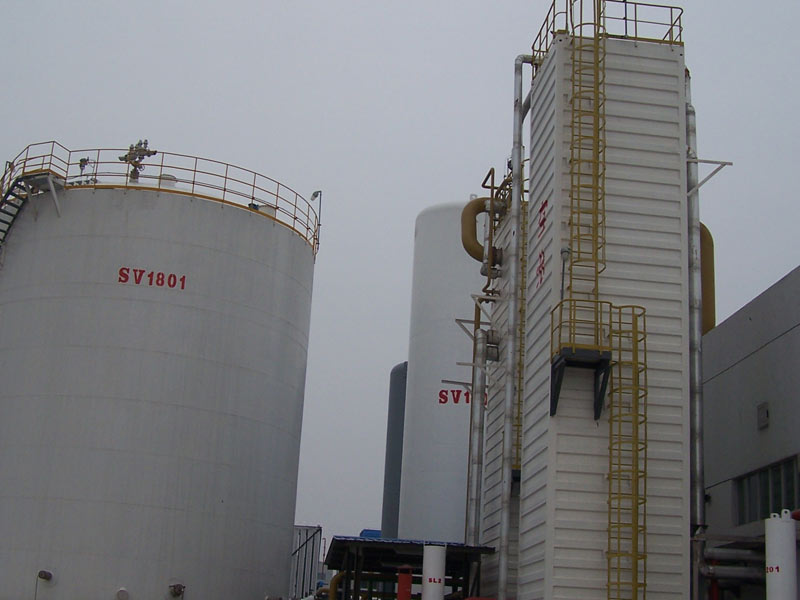

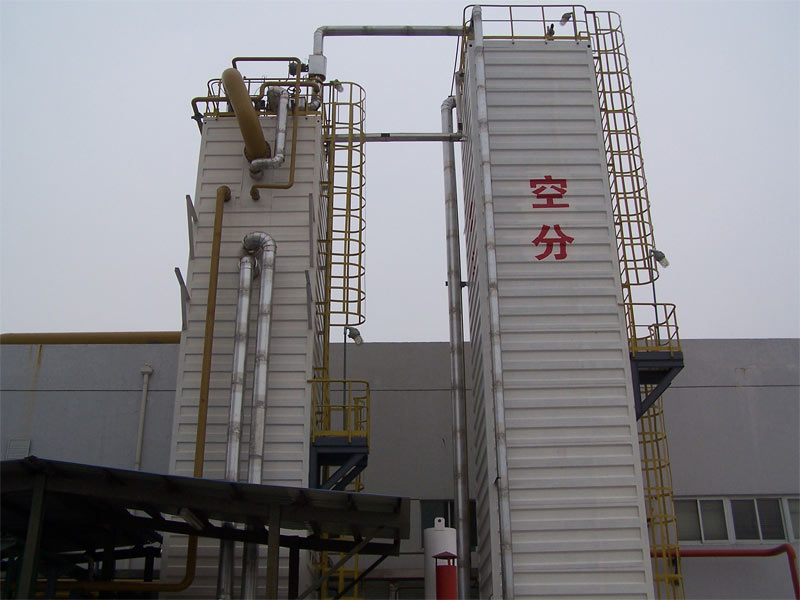

Cryogenic Air Separation Nitrogen Generator

  • Model: KDN-300
  • Nitrogen Capacity: 300M3/h
  • LiQUIDE Nitrogen Capacity: 20 NM3/h
  • Nitrogen Purity: 99.99%
  • Nitrogen Pressure: 0.8MPa(G)

We're here to help:

Easy ways to get the answers you need.

  • cryogenic air separation nitrogen generator
  • cryogenic air separation nitrogen generator
  • cryogenic air separation nitrogen generator
  • cryogenic air separation nitrogen generator
  • Technical Data
  • Specifications
  • Inquiry

Model Nitrogen Capacity LiQUIDE nitrogen Capacity Nitrogen Purity nitrogen pressure
0.8Mpa Nitrogen Generator
KDN-200 200M3/h 0 99.99% 0.8MPa(G)
KDN-300 300M3/h 20 NM3/h 99.99% 0.8MPa(G)
KDN-500 500M3/h 40 NM3/h 99.99% 0.8MPa(G)
KDN-800 800M3/h 80 NM3/h 99.99% 0.8MPa(G)
KDN-1000 1000M3/h 100 NM3/h 99.99% 0.8MPa(G)
KDN-1500 1500M3/h 150 NM3/h 99.99% 0.8MPa(G)
KDN-2000 2000M3/h 200 NM3/h 99.99% 0.8MPa(G)
KDN-3000 3000M3/h 300 NM3/h 99.99% 0.8MPa(G)
KDN-4500 4500M3/h 450 NM3/h 99.99% 0.8MPa(G)
KDN-5000 5000 M3/h 500 NM3/h 99.99% 0.8MPa(G)
KDN-6000 6000 M3/h 600 NM3/h 99.99% 0.8MPa(G)

working process of nitrogen generator

Air which was sucked in from air intake tower enters the suction air filter and after being removed of dust and other mechanical contaminants in it, it is compressed to the pressure of 1.0MPa by piston air compressor. Air from the air compressor is cooled to ~5℃ in the refrigeration unit, taken into the molecular sieve adsorber for removing H2O, C2H2 and CO2. There are two molecular sieve adsorbers which operate on a staggered cycle, i.e. one vessel is adsorbing the contained impurities while the other is being reactivated by waste nitrogen from the rectifying column.
Then the cleaned air is taken into the rectifying column and cooled by the return waste nitrogen, oxygen and nitrogen through the main heat exchanger. The steam-liquid air mixture is taken into the lower column for rectifying, and herein the pure nitrogen of 99.99% from the top of the column enters into the evaporator-condenser and condensed by liquid air from the lower column. A part of the liquid nitrogen is fed to the lower column as reflux.
In the main evaporator-condenser, liquid air is evaporated to steam, then enters the main heat exchanger and get out from the middle of the main heat exchanger and enter into the turbine expansion to generate most refrigeration for need of the plant's operation. After the expander, air enters to the main heat exchanger, and get out from the cool box.
The product nitrogen of 99.99%N2 gained at the top of the lower column is warmed up through the main heat exchanger and then taken to the user.
The waste nitrogen from the cold box is divide into two parts, one part goes to the regeneration molecular sieve adsorber system and the other part is vent. +86 0371 2888 8159
