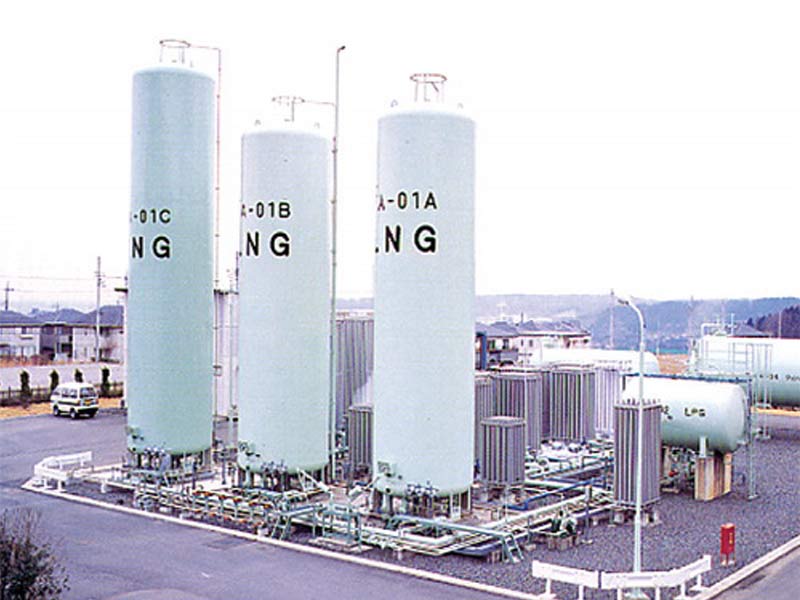

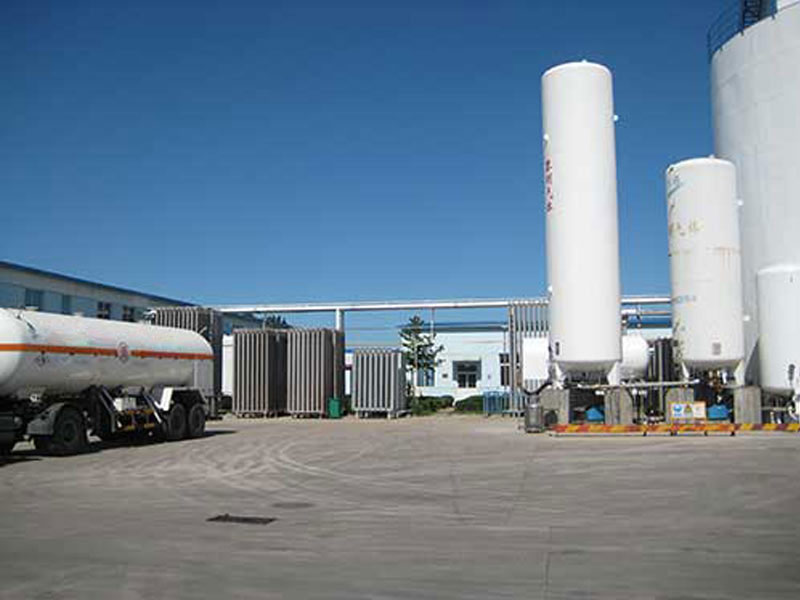

Cryogenic Liquid Vacuum Storage Tank

  • Product code: 007-
  • Volume: 5m³-100m³
  • Medium: Liquid oxygen, liquid nitrogen, liquid argon, liquid carbon dioxide
  • Pressure: 0.2MPa or 0.8Mpa or 1.6Mpa

We're here to help:

Easy ways to get the answers you need.

  • cryogenic liquid vacuum storage tank
  • cryogenic liquid vacuum storage tank
  • cryogenic liquid vacuum storage tank
  • Technical Data
  • Specifications
  • Inquiry

Cryogenic liquid storage tank:

Models KNT-5/2 KNT-10/2 KNT-15/2 KNT-20/2 KNT-30/2 KNT-50/2 KNT-100/2
Volume 5m³ 10m³ 15m³ 20 m³ 30m³ 50 m³ 100m³
gallon 1320 2641 3962 5283 7925 13208 26417
Pressure 0.2MPa 0.2MPa 0.2MPa 0.2MPa 0.2MPa 0.2MPa 0.2MPa

Models KNT-5/8 KNT-10/8 KNT-15/8 KNT-20/8 KNT-30/8 KNT-50/8 KNT-100/8
Volume 5m³ 10m³ 15m³ 20 m³ 30m³ 50 m³ 100m³
gallon 1320 2641 3962 5283 7925 13208 26417
Pressure 0.8MPa 0.8MPa 0.8MPa 0.8MPa 0.8MPa 0.8MPa 0.8MPa

Liquid oxygen storage tank
Features:
1、Adopting two-way inlet system.
2、Simple, compact and orderly layout.
3、Using duplexed safety valves and explosion-proof equipment.
4、Advanced design,reasonable pipeline system and operating system.
Application:
       Our products are widely used in large-gas-consumption field such as gas industry, medical area and metal smelting as best choice for centralized gas supply. Our products have the advantages of long service life, compact structure, little occupying area, centralized control, simple operation and are mainly used in cryogenic liquid storage of liquid oxygen, liquid nitrogen, liquid argon and carbon dioxide.
Matching devices:gasifier、cryogenic liquid pump、pressure reducing devices、gas convergence exhaust.
Features:
Our products have advantages of long service life、compact structure、small occupying area、centralized control and simple operation and maintenance, which are widely used in large-gas-consumption field such as gas industry, medical area and metal smelting. Our products are the best choice for centralized gas supply.
Performance:
1、Using imported oil paint to insure better appearance and longer antiseptic life.
2、Adopting double-layer powder vacuum insulation,perfect quality assurance system,strict manufacturing process and imported key components to insure high quality.
3、Our products have compact structure of storage tank,advanced design of pipeline and procedure,simpler and safer operation and maintenance,which insure safety and reliability.
4、Our products use perlite of high quality,helium mass spectrum leak detection by overall cryogenic storage tank to insure good heat insulation,little evaporation loss and long service life.
5、Two kinds of liquid oxygen storage tank: vertical tank and horizontal tank. We can design and manufacture cryogenic liquid storage tank of different volume and pressure rating except for conventional products.
